ZeroCheck Polynomial Interactive Oracle Proof

ZeroCheck Polynomial Interactive Oracle Proof — thumbnail

// · · 3 min read

zero knowledge snarks

The ZeroCheck PIOP (Polynomial Interactive Oracle Protocol) is a subprotocol used in zero-knowledge proof systems to verify that a polynomial evaluates to zero over a specific domain. It is a critical building block in many zero-knowledge proof systems, particularly in protocols like Plonk, to check consistency or enforce certain constraints.

Purpose of ZeroCheck PIOP

In a zero-knowledge proof, the prover often needs to demonstrate that a polynomial $f(X)$:

  • Either evaluates to zero on certain inputs, such as all elements in a domain $D$,
  • Or satisfies specific conditions implying that some computation is correct.

For instance:

  1. $f(X) = 0$ might encode the correctness of a relation.
  2. $f(X) = 0$ over all $X \in D$ might verify consistency with a pre-specified structure.

This ensures that the prover’s claims about the polynomial are consistent with the protocol’s constraints.

How ZeroCheck PIOP Works

The protocol is structured in several rounds of interaction between the prover and verifier. Here’s the general approach:

  1. Input: The prover holds a polynomial $f(X)$ and claims it satisfies $f(X) = 0$ over a domain $D$.
  2. Polynomial Reduction:

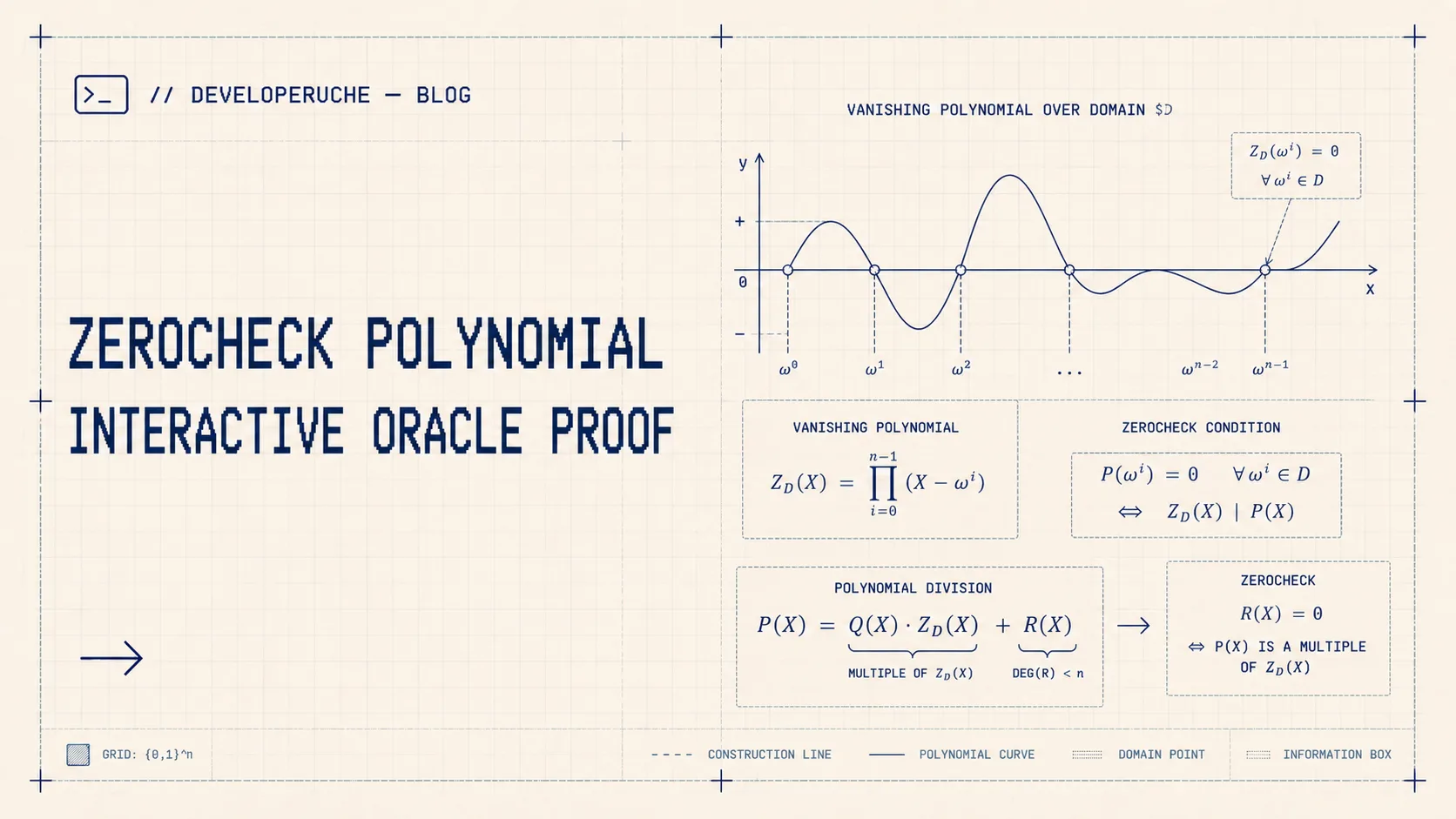

    • The prover reduces $f(X)$ modulo a vanishing polynomial $Z_D(X)$, which vanishes (evaluates to zero) at all points in $D$:

$$ Z_D(X) = \prod_{x \in D} (X - x) $$

  • The prover expresses $f(X)$ as: $f(X) = Z_D(X) \cdot q(X) + r(X)$,

where:

  • $q(X)$ is the quotient polynomial.
  • $r(X)$ is the remainder polynomial with degree $\text{deg}(r) < \text{deg}(Z_D)$.
  1. Verifier Query:
    • The verifier checks whether $r(X) = 0$. This involves:
    • Sampling random challenge points $\alpha$ from the field.
    • Asking the prover for evaluations of $f(X)$, $Z_D(X)$, and $q(X)$ at $\alpha$.
  1. Verification:
    • Using the prover’s responses, the verifier confirms:
    $f(\alpha) = Z_D(\alpha) \cdot q(\alpha) + r(\alpha)$.
  2. If $r(X) = 0$, then $f(X)$ is divisible by $Z_D(X)$, and the claim $f(X) = 0$ over $D$ holds.

This relation works fine here and the polynomial is a Univariate polynomial, would like to establish such relationship but over a multilinear polynomial this time. How can we achieve this?

ZeroCheck: Multilinear polynomials

This finds application in HyperPlonk (a multi-linear expression of the plonk protocol)

Given a polynomial $w(x_1, x_2, x_3)$, prove $w$ is a zero polynomial (a poly that evaluates to zero for every input variables).

Making use of the Schwartz-Zipple lemma. prover can prove sufficently that $w$ is a zero polynomial if $w(r_1,r_2,r_3)$ = 0, where $\{r_1,r_2,r_3\}$ are random field elements.

Prover builds a polynomial $f$ and proves $f$'s is $0$ via SumCheck $f(x_1,x_2,x_3) = w(r_1,r_2,r_3) \cdot eq((x_1,x_2,x_3), (r_1,r_2,r_3))$

where; $eq(\vec{x},\vec{y}) = \prod_{i=1}^{3} (x_iy_i + (1 - x_i)(1 - y_i))$ $eq(\vec{x},\vec{y})$ is $1$ if $\vec{x}= \vec{y}$; else $0$;

Next: Permutation Check Polynomial IOP

reference: Zhenfei Zhang: https://www.youtube.com/watch?v=kAD5aBnZHvU
